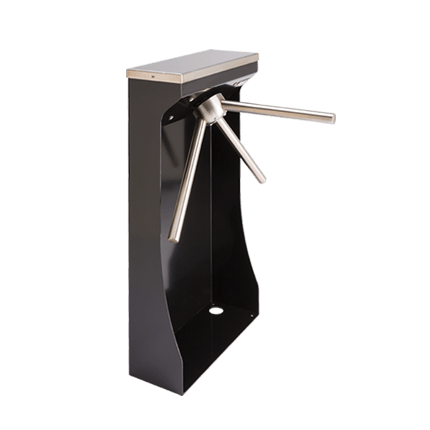

Brute Series BR5500 Tripod Turnstile

Description The Brute Series units operate reliably with high traffic volumes where cost is an important consideration. Heavy 7-gauge carbon steel cabinets can be interfaced with optional LCD counters, card readers, push-button, and wireless remotes. These units have a Powder Coated Black finish with Stainless Steel Top. Portable units and ADA Swing Gates are also available.  Custom colors are available and can be quoted upon request. Data Sheet – BR5500 Brute Series Turnstiles Data Sheet – BR5500 Brute Series Portable Turnstile Installation Manual – BR5500 Brute Series Drawing – BR5500-S Tripod Drawing – BR5500-P Portable Drawing – BR5000-ADA Gate APPLICATION Interior or exterior use Powder Coated Black finish with Stainless Steel Top. Ideal for high-traffic volume areas (ex. schools, stadiums, retail, or anywhere else you need reliable, basic control) where cost is an important consideration Can be interfaced with optional LCD counters, computer attendance systems, card readers, push-button, and wireless remote controls Integration to existing or our EntraPASS Access Control System   OPTIONS Home Position Switch – Additional limit switch provides an SPDT output while at home for security integration Proximity Sensor Upgrade – Replaces limit switches with proximity sensors for part longevity Bidirectional Key Override Set for Manual or Electric 2-Way Units – Allows the turnstile to be locked independently in each direction with a turn of a key Daylight Visible Indicator Lights – A tri-color (R/G/Y) indicator light. Most models only use R/G. 8 Digit Key Resettable LCD counter with 7 year Lithium Battery Single or Double Push Button (installed on-site) One Channel 900 MHz Wireless Receiver (one per direction) One or Two Button Wireless Key Fob Transmitter Battery Back-Up – 12ah battery kit with 2x 12VDC batteries & 2 amp 24VDC charger Power Receptacle – External power receptacle that allows units to be plugged in w/ extension cord   CONTROLS Manual Both Ways Manual One Way / No Passage in Opposite Direction Electronic One Way / Free Exit Electronic One Way / No Exit Electronic Both Ways *Each electronically controlled direction can be configured as FAIL LOCK (fail secure) or FAIL OPEN (fail-safe) upon power loss DIMENSIONS • Height: 37” (939.8mm) • Width: 20.125” (511.1mm) • Depth: 8” (203.2mm) • Arm Length: 14.500” (368.3mm) •  NOTE: 2-4″ of space should be left at the end of the arm, making the passage width about 16.5″-18.5″   SAMPLE PLANS with the BR5500   INSTALLATIONS      The Series is shown here with an access control reader mounted on top. BR5500 turnstile installation is available – see our Portfolio of Work
